A high-ceiling garage breaks most of the sizing advice written for living rooms. A standard mini split head is engineered to drop air across an 8 ft drop, and in a space with 11 or 12 ft of ceiling plus a bare concrete slab, that air lands above your head and never reaches the floor. So for the best mini splits for garages with high ceilings, capacity, airflow throw, and mounting height matter far more than the square footage on the box.
Our short answer: a 36,000 BTU (3 ton) 230V inverter wall-mount system handles the largest high-ceiling garages in this roundup, and a 24,000 BTU (2 ton) unit covers a typical 2-car garage once you account for the cubic volume and door openings. Every system below runs on a dedicated 240V circuit, uses a pre-charged line set, and delivers heat as well as cool air without a combustion heater or ductwork. If you have not conditioned a garage before, start with our guide to mini split systems for garages to get the basics down first.
We spent weeks reading owner reviews from shops, machine rooms, and three-car garages, then cross-checked every spec against the manufacturer listing. What follows is the 2026 roundup, ranked by how well each unit handles tall ceilings, cold-climate heating, and the electrical realities of a detached garage.
Table of Contents
Top 3 Picks for Best Mini Splits for Garages with High Ceilings (October 2026)
Three systems stand out once throw distance and low-temperature heating are factored in. The first is our editor’s choice, the second is the strongest cold-climate performer per ton, and the third is the fit for smaller high-ceiling rooms.
DELLA Vario 36,000 BTU
- 36000 BTU 3 ton inverter
- Heating to -4F
- Cools up to 2500 sq ft
- 16.4 ft line set kit
Senville AURA 24,000 BTU
- 24000 BTU 2 ton
- Heating to -22F
- 20.5 SEER2 Energy Star
- Alexa and WiFi kit
Quick Comparison: Best Mini Splits for Garages with High Ceilings in 2026
All ten systems below are single-zone inverter heat pumps. Note the heating floor for each one, because it decides whether the unit works as a garage heater in your climate or only as summer cooling.
| Product | Specifications | Action |
|---|---|---|
| DELLA Vario 36,000 BTU |
|
Check Latest Price |
 Cooper & Hunter 36,000 BTU |
|
Check Latest Price |
 Senville LETO 36,000 BTU |
|
Check Latest Price |
| Senville AURA 24,000 BTU |
|
Check Latest Price |
 Cooper & Hunter 24,000 BTU |
|
Check Latest Price |
 DELLA Vita 24,000 BTU |
|
Check Latest Price |
 ROVSUN 24,000 BTU |
|
Check Latest Price |

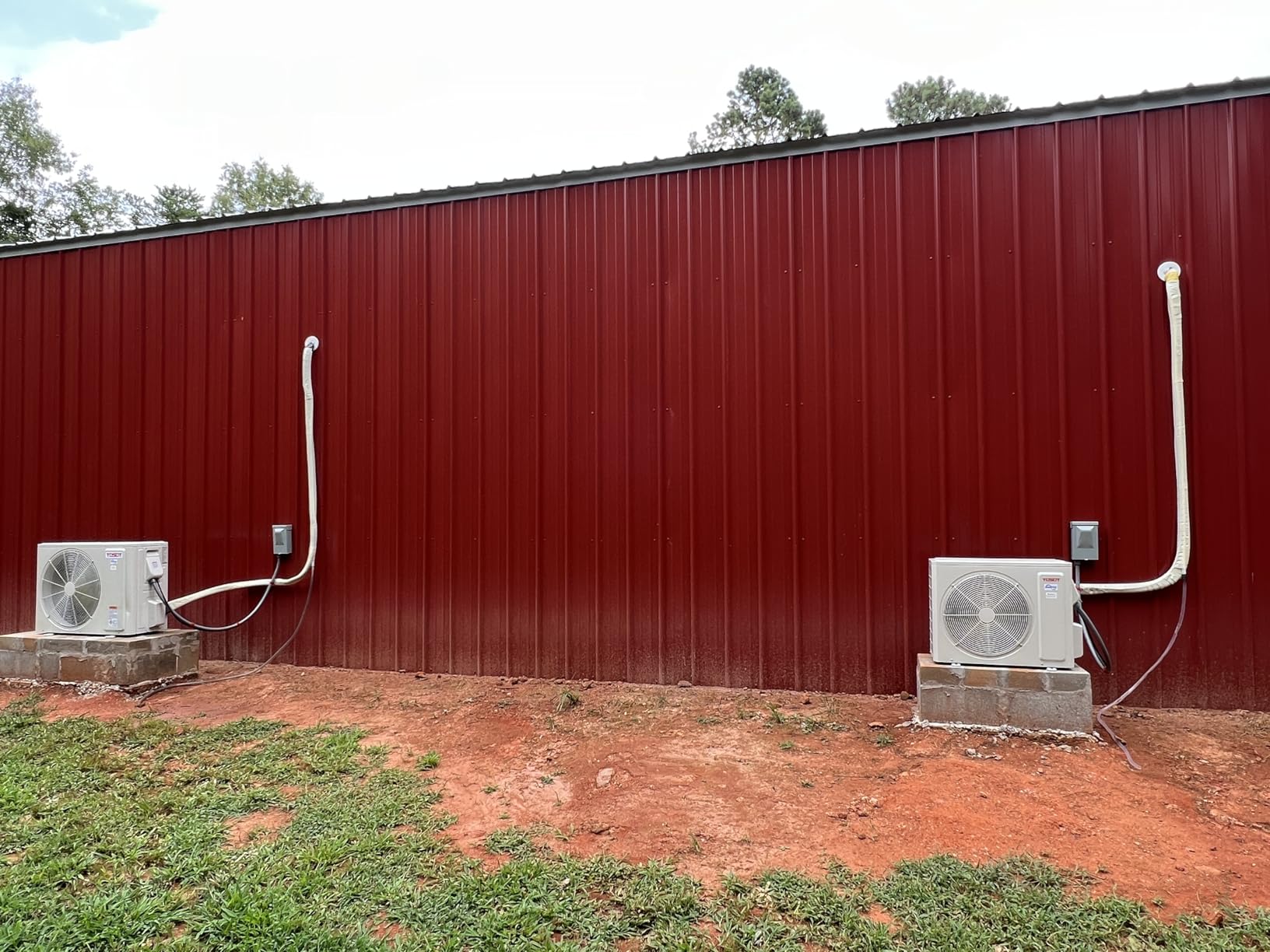

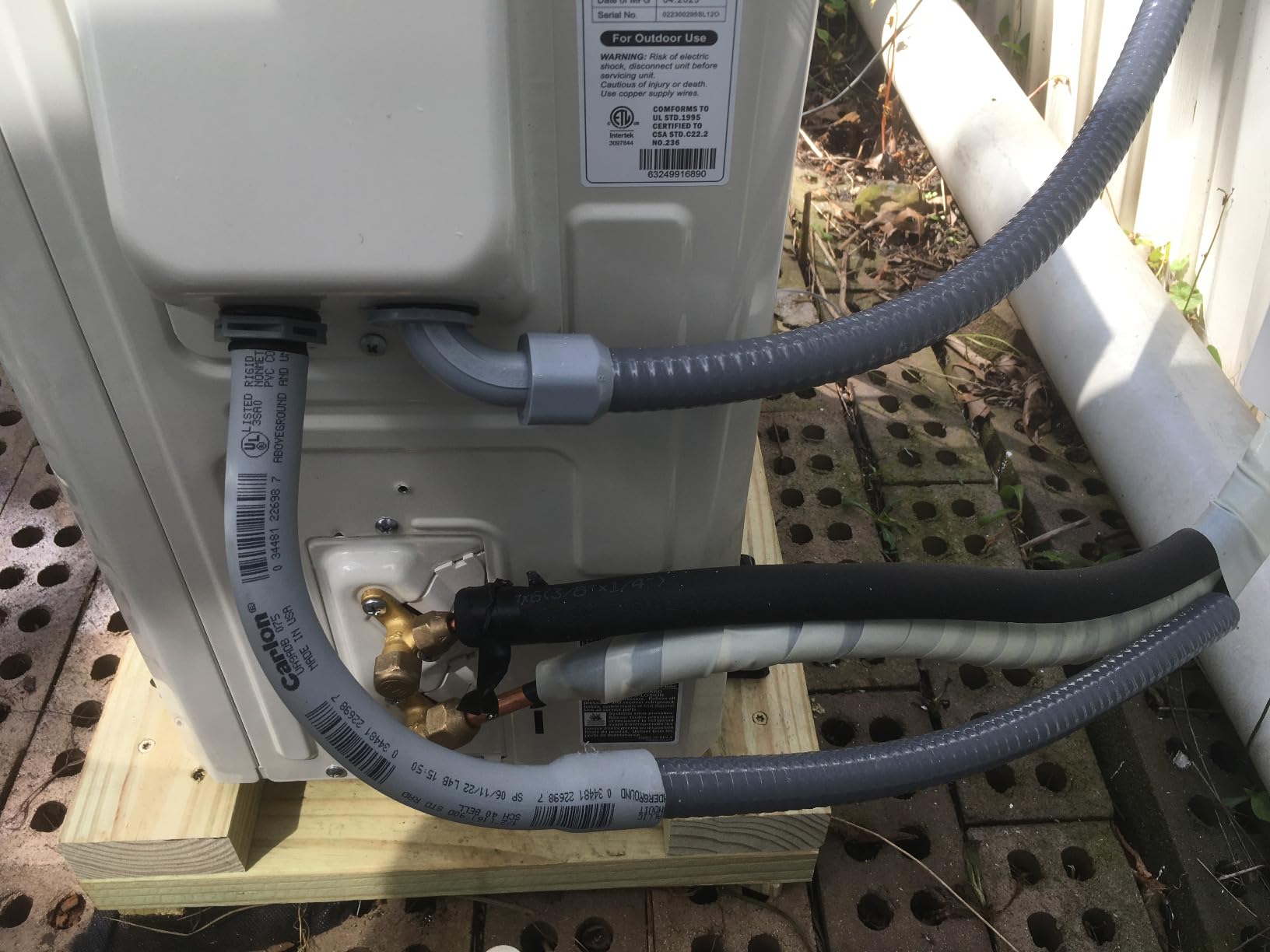

| TOSOT 18,000 BTU |
|
Check Latest Price |

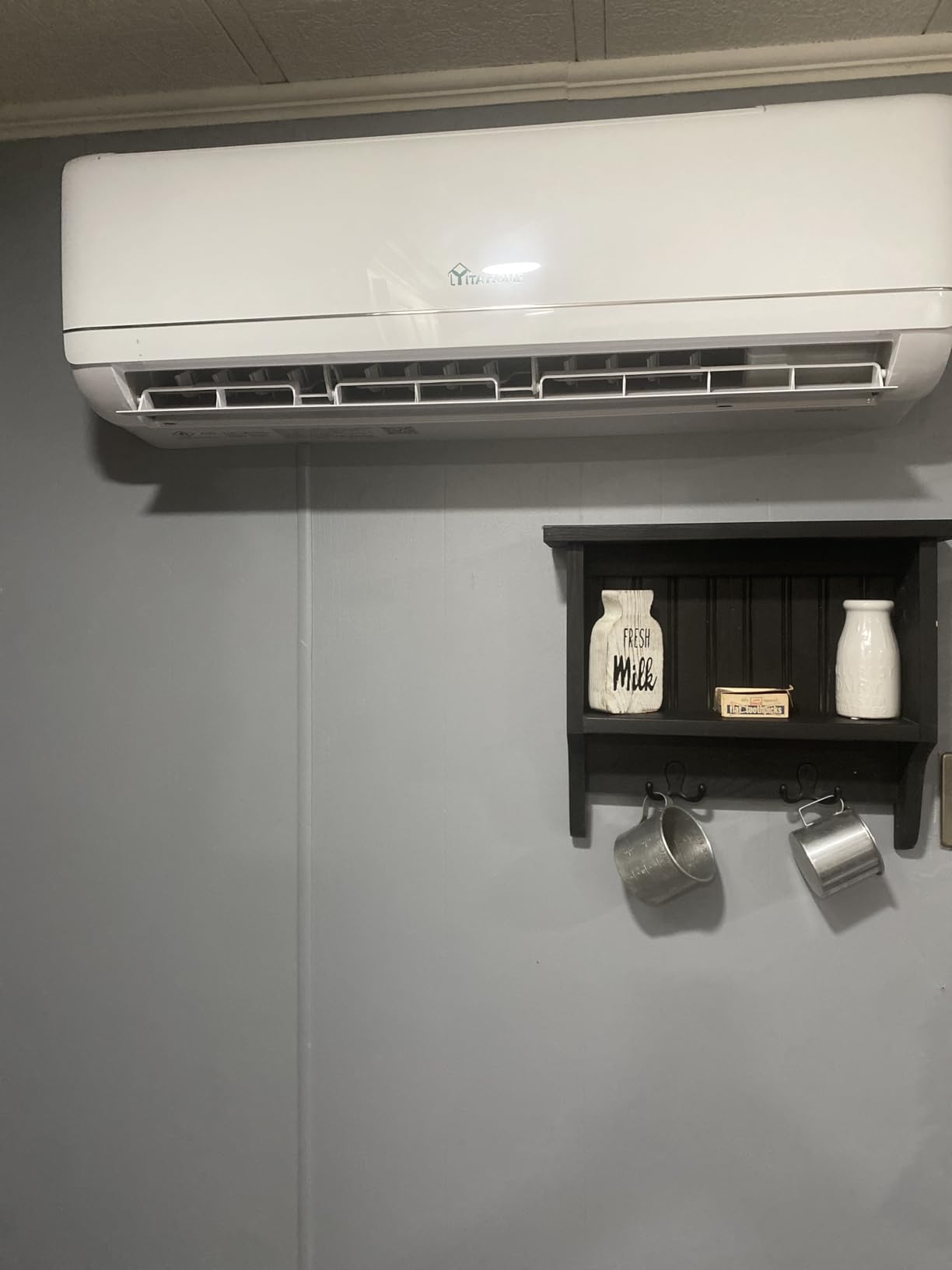

 YITAHOME 24,000 BTU |
|
Check Latest Price |

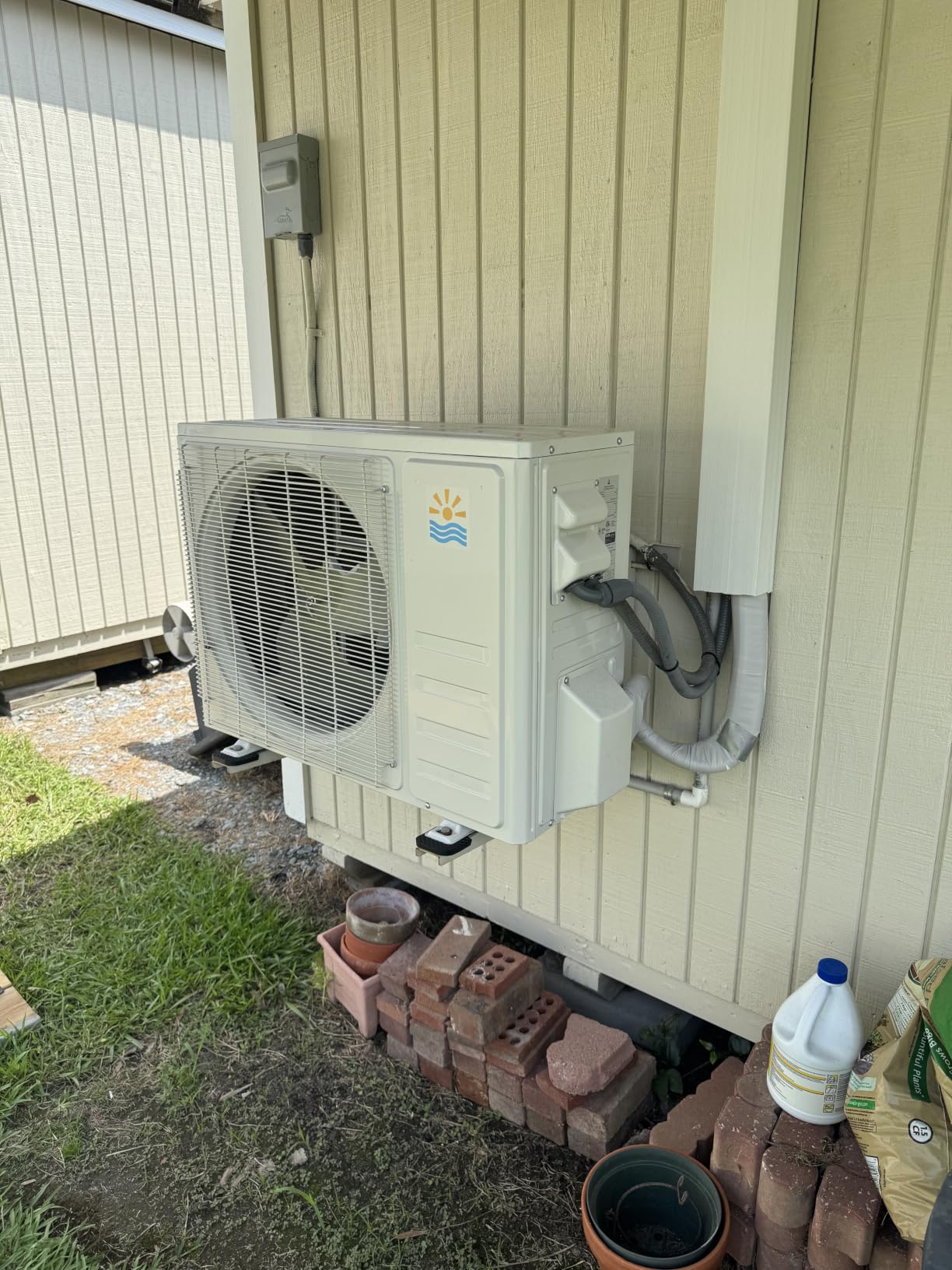

 Rellytech 18,000 BTU |
|
Check Latest Price |
How to Size a Mini Split for a Garage with High Ceilings
Size by cubic feet, not square feet, because every extra foot of ceiling multiplies the volume you are conditioning. Multiply floor length by width by ceiling height, then apply a loading factor for the garage door, windows, and any insulation you have added.
Take a 24 ft by 24 ft three-car garage with 11 ft ceilings, which works out to 6,336 cubic feet. As a working starting point for a lightly insulated space, roughly 1,000 BTU per 1,000 cubic feet of volume gets you into the 6,000 BTU range, but a door that opens daily and bare walls push that toward a 9,000 BTU unit.
The same floor area with 9 ft ceilings is only 5,184 cubic feet. That is why two garages with identical square footage can need different equipment.
A quick reference for common high-ceiling garages: a 20 ft by 20 ft space at 10 ft ceilings is 4,000 cubic feet and usually lands at 9,000 to 12,000 BTU; a 20 ft by 30 ft space at 12 ft ceilings is 7,200 cubic feet and usually lands at 12,000 to 18,000 BTU; and anything past 8,000 cubic feet with frequent door openings belongs in 24,000 BTU territory or larger.
Oversizing anxiety is the most common worry we saw in garage forums, and it is mostly outdated for inverter equipment. A variable-speed compressor throttles its output to match the load rather than cycling on and off, which is exactly why the 2-ton systems in this roundup hold steady temperature in large open volumes. One Garage Journal owner documented an 18K install in a 25 ft by 25 ft garage with 11 ft ceilings, mounting the head at 8 ft 5 in, and reported it handled the space without complaint.
The other question that comes up constantly is one big system or two smaller ones. One unit is simpler to install and cheaper to run, but a single head mounted high on a long wall leaves the far corner to itself. If your garage is deeper than about 24 ft and you want even temperatures end to end, two smaller systems on separate circuits usually beat one oversized head.
Wall Mount vs Ceiling Cassette for High Ceilings
A wall-mount head is the right default for most garages with high ceilings, and a ceiling cassette is the right answer when the framing allows it. None of the ten systems in this roundup is a cassette, so this section explains the tradeoff rather than ranking a specific model.
A high wall mount hangs near the top of the wall and throws air down and across the space, which works well in a 10 to 12 ft garage and keeps all the mechanical parts reachable for filter cleaning. The trade-off is visible hardware on an unfinished wall, and a head mounted at ordinary living-room height can leave cold air pooling above your head in a 13 ft shop. Planning the mounting height and any overhead storage around the head is worth doing before the wall is finished.
A ceiling cassette recesses into the joist space and discharges 360 degrees, which distributes air evenly without a visible head taking up wall space. It is the preferred configuration in tall shops, according to garage forum discussion, and it pairs naturally with overhead storage racks. The constraint is depth: a standard cassette needs roughly 11 to 13 inches of clear joist space, which is scarce in pole barn construction with exposed 2×6 roof joists. If your joists are shallow, a slim cassette or a high wall mount is the realistic path.
We recommend checking joist depth and planned overhead rack heights before choosing either style. Our bike lift and ceiling storage guide covers the vertical clearance numbers that decide whether a cassette location stays usable.

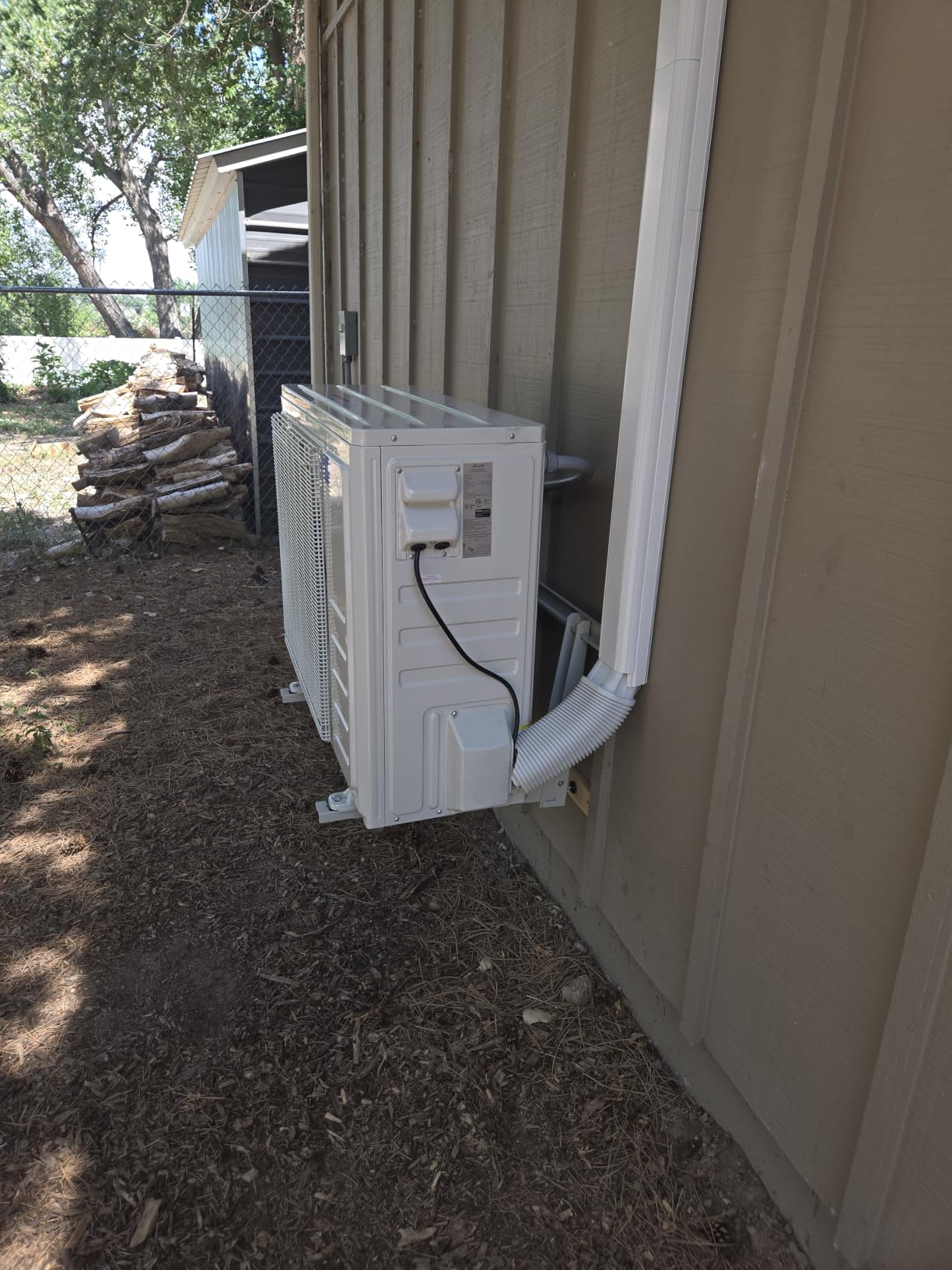

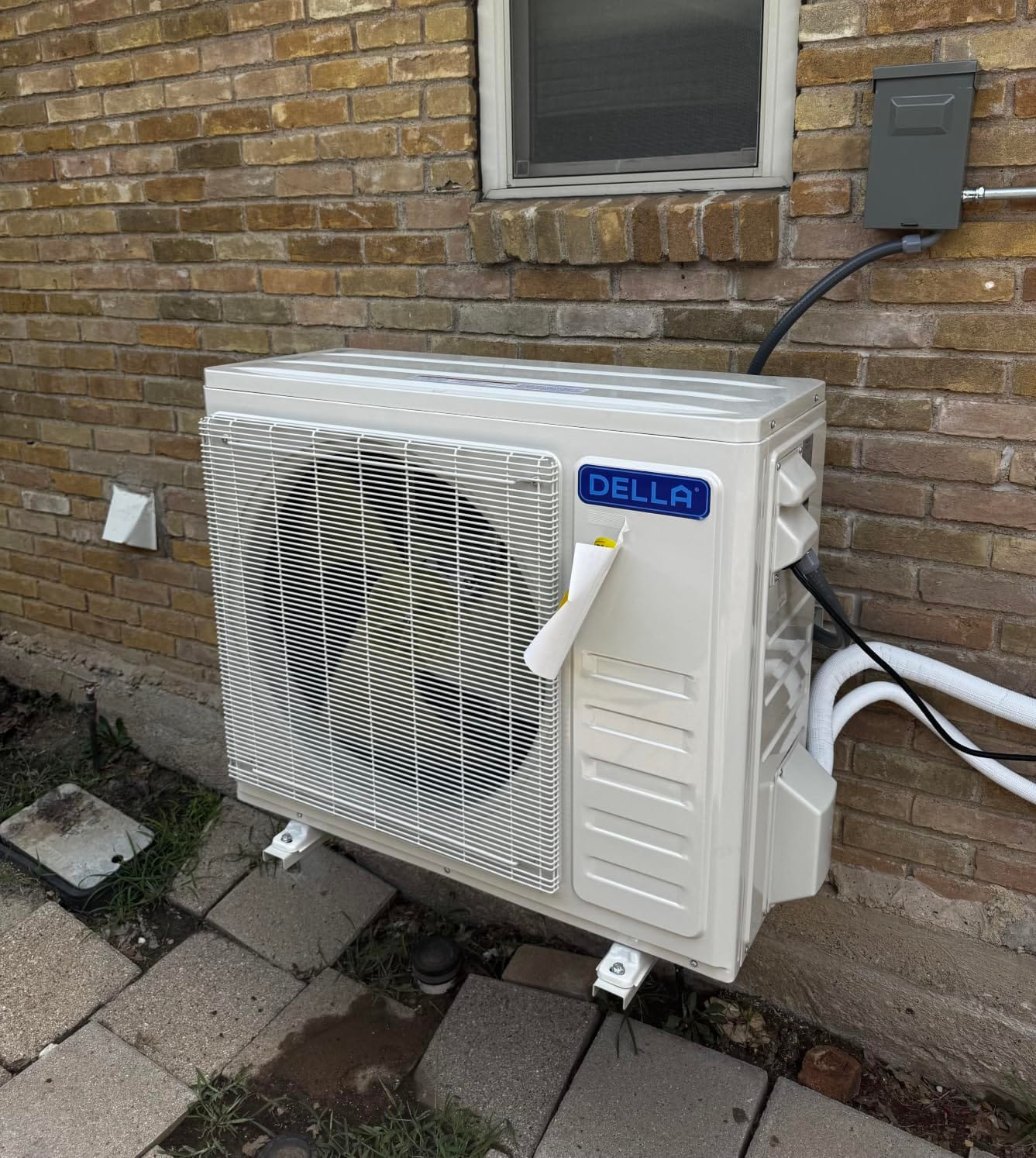

1. DELLA Vario 36,000 BTU 19 SEER2 Ductless Mini Split Heat Pump
DELLA Vario Series 36,000 BTU 3 Ton 19 SEER2 Ductless Mini Split AC, Pre-Charged Heat Pump, 230V Energy Efficient Inverter System, Work with Alexa, Cools up to 2500 Sq.Ft, 16.4ft Installation Kit
36000 BTU 3 ton
19 SEER2 inverter
230V
Heating to -4F
Cools up to 2500 sq ft
39.7 lb
Pros
- 3 ton capacity with headroom for large open volumes
- 19 SEER2 DC inverter with up to 30% power savings
- Heating to -4F ambient
- Quiet indoor operation from 36 dBa
- Includes 16.4 ft line set and drain pipe
Cons
- Professional installation is mandated rather than DIY
- Line sets over 25 ft need a refrigerant adjustment
- Smart features depend on WiFi and Alexa availability
This is the unit we recommend for a large detached garage or workshop with 10 to 13 ft ceilings. At 36,000 BTU and a listed 2,500 sq ft capacity, it has more capacity headroom than anything else we reviewed, which matters when the volume is measured in cubic feet and the door opens all day.
Owners consistently describe strong cooling in open garage and shop volumes, straightforward 230V hookup, and quiet inverter operation once the compressor settles into a lower speed. The 4D airflow and I Feel remote sensing are genuinely useful in a tall space because the sensor reads temperature at your position rather than at the ceiling.
The technical profile is where this system separates itself. It is ETL Listed and AHRI Certified, uses R-454B refrigerant, heats down to -4F ambient, and runs on a maximum 30A fuse. The DC inverter compressor adjusts output rather than switching on and off, so a garage that needs a little cooling at 8 pm does not kick the whole system into full capacity.
Two practical notes. First, the pre-charged R-454B charge is factory-set for a line set under 25 ft, so a longer run to reach the outdoor location means a refrigerant adjustment by the technician. Second, the listing specifies a maximum fuse size of 30A, which means a dedicated 240V circuit rather than a shared 15A garage receptacle.
Is the 36,000 BTU capacity worth it in a tall garage?
Yes, if your volume runs past roughly 5,000 cubic feet or the garage door sees regular use. In that range a 2-ton head spends most of its time at full output trying to keep up, and the 3-ton unit holds setpoint with the compressor at partial load.
For a 2-car garage under 2,500 cubic feet with R-13 walls, this unit is more capacity than you need and the Senville AURA below is the better fit.
What are the drawbacks of this DELLA system?
Installation is not a DIY job. The pre-charged line set still has to be cut, flared, vacuumed, and verified by a licensed technician, and several owners point out that longer runs need extra refrigerant work on top of that.
App and voice features depend on WiFi and Alexa being reachable in the garage, which is worth checking before you finalize the control setup.

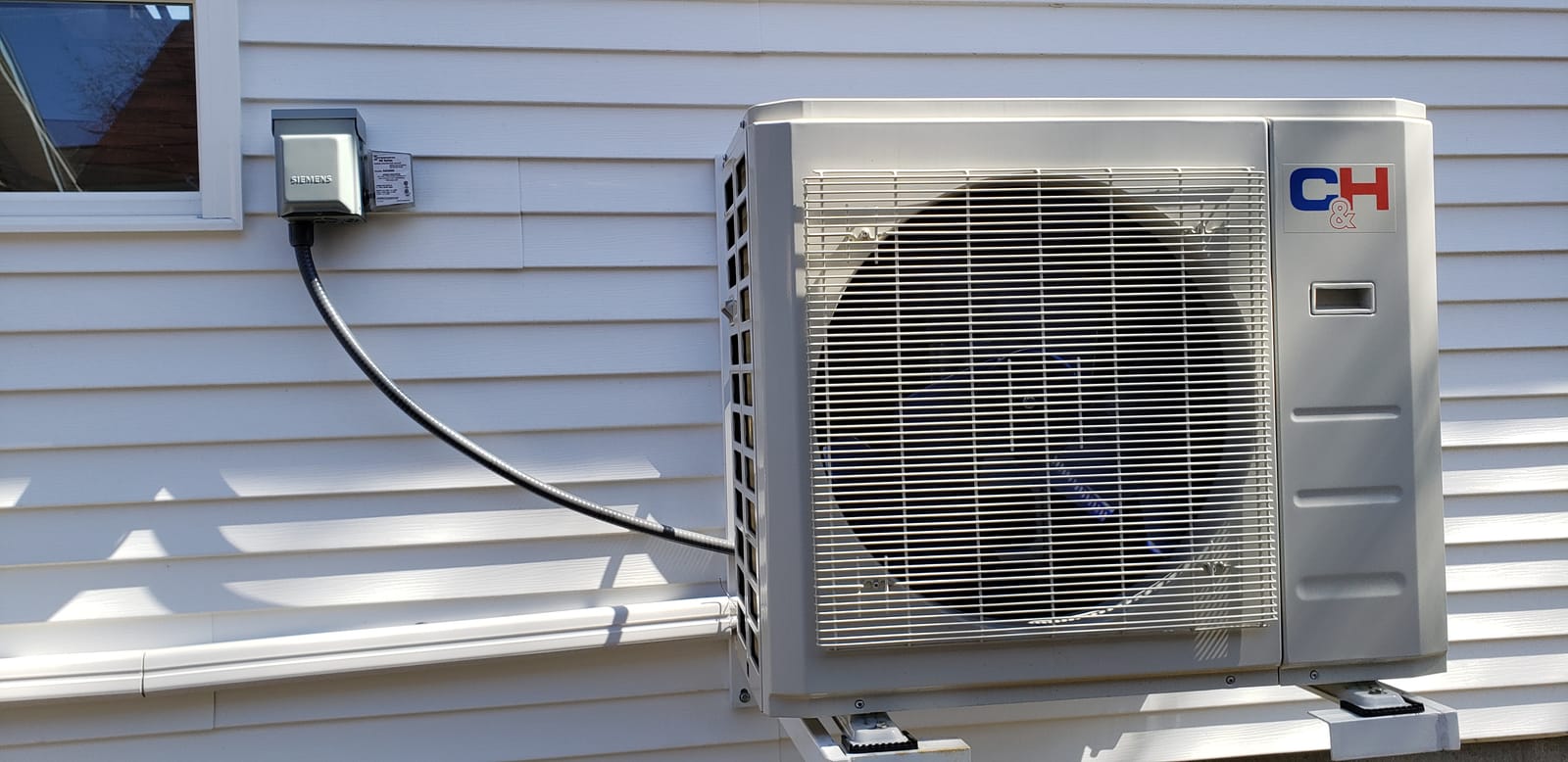

2. Cooper & Hunter 36,000 BTU 19.5 SEER2 Wall Mount Heat Pump
Cooper & Hunter 36,000 BTU 230V Wall Mount Mini Split Heat Pump, 19.5 SEER2
36000 BTU 3 ton
19.5 SEER2
230V
Heating to -13F
320 lb total
Pros
- 19.5 SEER2
- the highest efficiency rating among the 3 ton systems here
- Heating to -13F ambient for real cold-climate use
- Exceptionally quiet indoor head and condenser
- Shop owners report strong cooling in 100F heat
- Smart kit for app control
Cons
- Heaviest system reviewed at 320 lb
- so plan access carefully
- Installation manual is thin and has a few physical quirks
- Wired for 240V L1 and L2 with no neutral

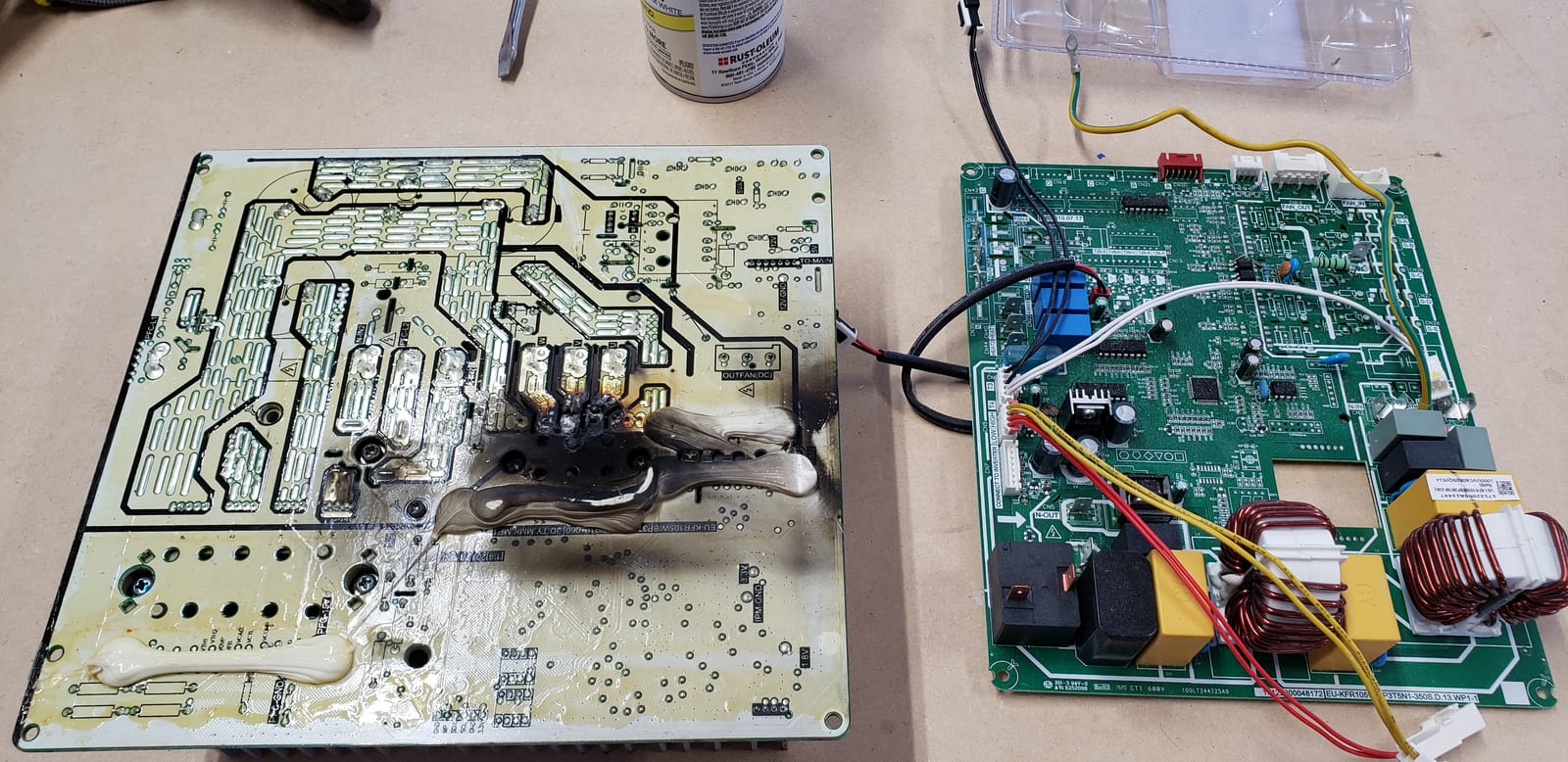

- One report of compressor and board failure within months
This Cooper & Hunter is the pick for a heated garage in a genuinely cold climate. A -13F heating rating is the second-coldest figure in this roundup, and pairing that with 3 tons of capacity means it can carry a tall metal shop through a northern winter rather than just topping off a cold room.
Metal shop and garage owners make up most of the reviews, and they are emphatic that the system holds temperature in unconditioned buildings with large doors. Humidity control is repeatedly praised, and the app setup is described as intuitive.
Efficiency is the headline spec at 19.5 SEER2, which is the best cooling rating among the three-ton options here. The outdoor condenser arrives pre-charged, the package includes a 16 ft insulated line set, a 16 ft communication cable, and a 16 ft drainage extension, and there is free U.S.-based technical support for contractors.
Documentation is the weak spot. Several DIY installers hit the same problems around the included wall sleeve, a single prop rod on the service panel, and 240V-only wiring on L1 and L2 with no neutral, which is unusual for U.S. installs and not clearly documented in the manual.
Does -13F heating matter in an uninsulated garage?
It matters a great deal if you plan to use the space year round. Standard heat pumps lose output as outdoor temperature drops, and a unit rated only to 5F or 61F will struggle or hold a high setpoint when a cold garage door opens at dawn in winter.
If your winters are mild and you mostly want summer comfort in the shop, the extra capacity of this model is more than the heating rating needs.
What should I check before ordering a 3-ton system?
Plan the delivery route first. At 320 lb this is the heaviest system in the roundup, so a planned path from the drop point to the install location avoids a scramble on install day.
Also confirm your panel can host a dedicated 240V L1 and L2 breaker, since this configuration does not use a neutral. A small but notable minority of owners report a compressor or control board failure in the first year and frustration getting warranty parts, so keep the serial number and install date on file.

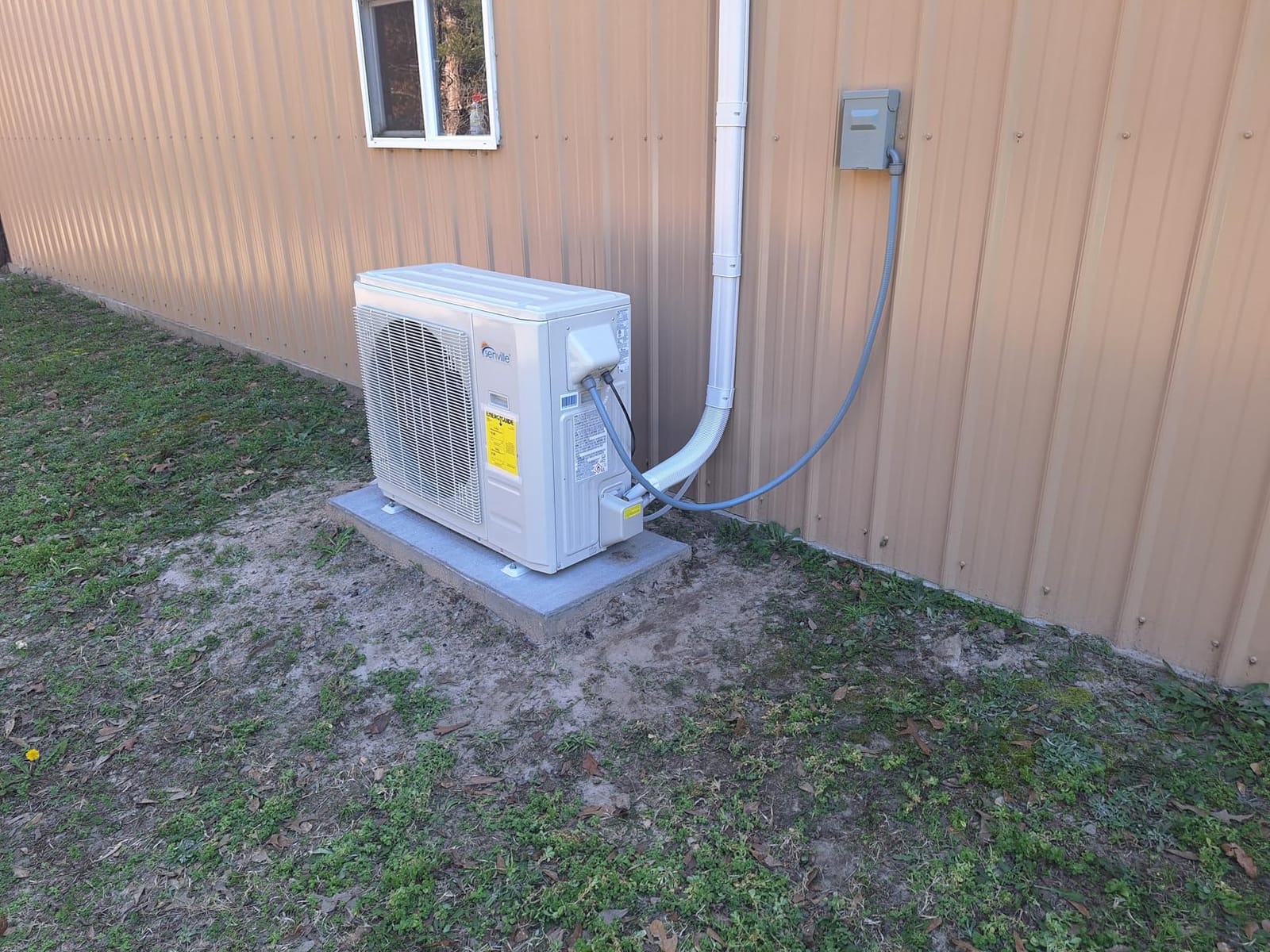

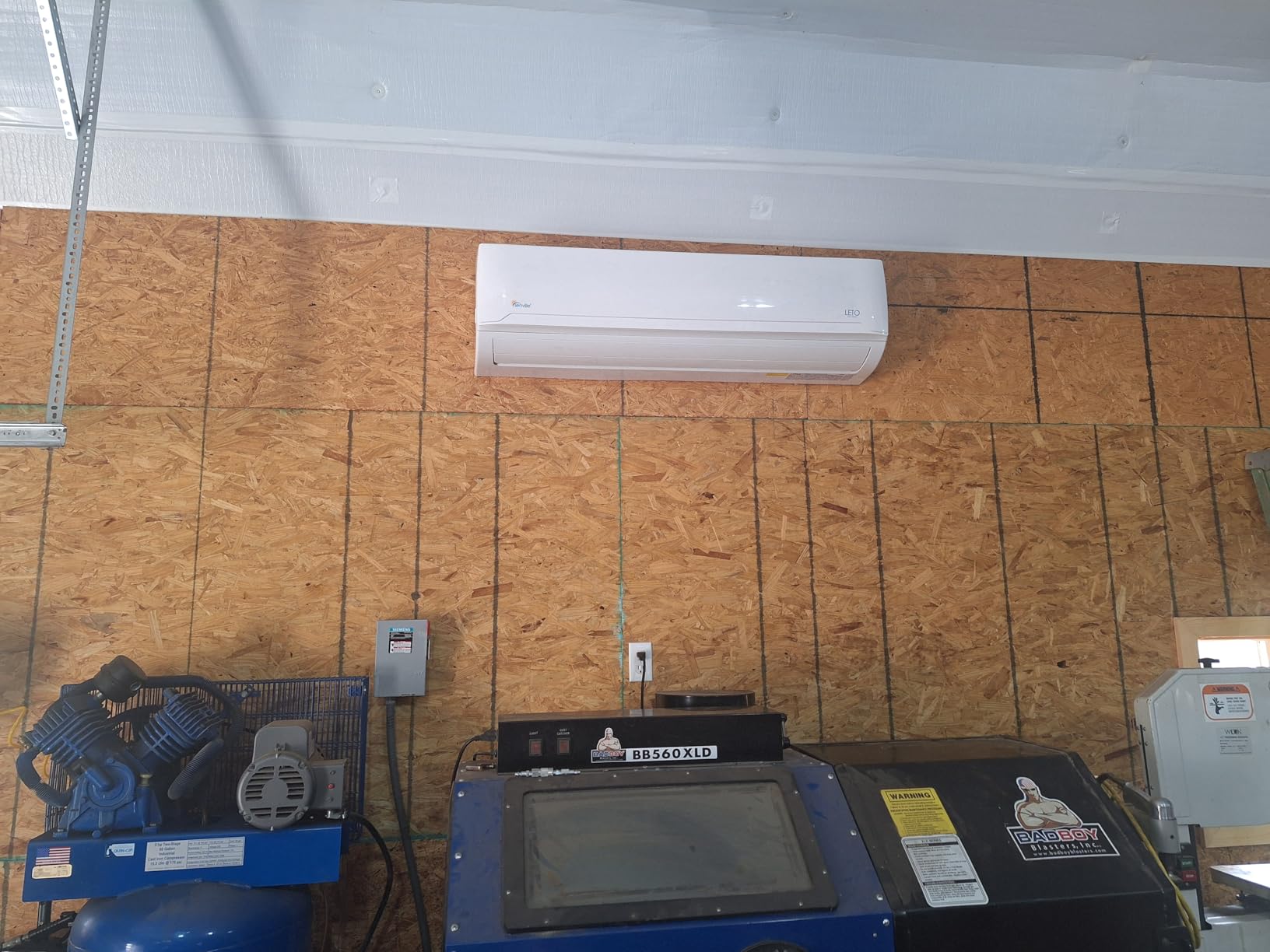

3. Senville LETO 36,000 BTU Heat Pump
Senville LETO Mini Split Air Conditioner, Heat Pump, White, 36000 BTU
36000 BTU 3 ton
18 SEER2
220V
Heating to 5F
40 dB indoor
Pros
- 3 ton capacity in a common 208-230V system
- Alexa enabled with app control and routines
- Five year parts and five year compressor warranty
- UL Listed and AHRI Certified DC inverter
- 40 dB rating suits open plan spaces
Cons
- Heating stops around 5F ambient
- well short of the cold-climate picks
- Warranty covers parts only and excludes labor
- Pre-charged for line sets up to 25 ft only
The LETO is the straightforward 3-ton choice for a large garage where cooling does most of the work. With 76% of ratings at five stars, buyers treat it as the default high-capacity build, and the listed 1,800 sq ft coverage is a realistic figure for a garage with moderately high ceilings and some insulation.
The Silver Ion filter and 4-in-1 operation covering cooling, heating, dehumidification, and fan mode make it a decent fit for a workshop where sawdust and humidity are daily concerns. Programmable routines through the app or Alexa let you drop the setpoint before you walk out to the car on a cold morning.
The package includes the indoor air handler, outdoor condenser, remote, and an installation kit with a 16 ft line set and communication wire. The unit is UL Listed and AHRI Certified with a DC inverter compressor, and the system runs in cooling, heating, dehumidification, and fan modes with a turbo function for quick pull-downs.
Two limits to plan around. The heat pump function stops around 5F ambient, so this is a summer-leaning system for most of the country. And the five year parts and five year compressor warranty excludes labor entirely, which is a meaningful gap if you expect to call out a technician for a refrigerant issue.
Is 18 SEER2 low for a 3-ton unit?
It is below the 19 and 19.5 ratings of the two other three-ton systems here, and that gap shows up on a monthly power bill over a full cooling season in a space this large. It matters more in a garage than in a bedroom because the door is opening and closing all day.
If your priority is lower operating cost, a higher-SEER2 three-ton system is the better long-term pick. If you simply need 3 tons of cooling capacity in a moderate climate, this one does the job.
Will this unit heat a cold garage?
Not below roughly 5F. Owners in cold regions report that the system handles shoulder seasons well but cannot keep a shop comfortable on the coldest nights, and the fix is a unit with a lower ambient heating floor.
The 16 ft of line set included in the kit covers most garage layouts, but a longer run needs a refrigerant adjustment that a licensed technician performs.
4. Senville AURA 24,000 BTU Cold Climate Heat Pump
Senville AURA Mini Split Air Conditioner, Heat Pump, White, 24000 BTU
24000 BTU 2 ton
20.5 SEER2
208-230V
Heating to -22F
36 dB indoor
Pros
- Only 2 ton pick rated to -22F for heating
- 20.5 SEER2 with a DC inverter compressor
- Larger than typical 24K indoor and outdoor hardware moves more air
- Freeze-stat mode holds a shop near 45F unattended
- Energy Star certified with a 7 year compressor warranty
Cons
- Warranty is voided unless a licensed technician performs the vacuum
- Line set has a 10 ft minimum cut length
- App reportedly fails to connect on some networks while Alexa works
The AURA also has the strongest cold-climate heating rating among 2-ton systems in this roundup at -22F. Combined with 20.5 SEER2 efficiency, one unit can both heat a freezing garage through winter and cool it in July without a second appliance.
It is the best-supported 2-ton option in this roundup by review volume, with 547 ratings. Several long-running owners report 14-plus-year service lives and repeated garage and shop installations, and they point out that the larger-than-typical 24K indoor and outdoor hardware moves noticeably more air than competing units at the same nominal capacity. That airflow is exactly what a tall garage needs to move air from a high head down to the floor.
Heating performance in the low 20s F is repeatedly reported as strong, and the freeze-stat mode keeps a shop near 45F without cycling the compressor. Annual energy consumption is listed at 3,973 kWh, the indoor unit runs at 36 dB, and the system is Energy Star certified, UL Listed, and AHRI Certified.
The friction points here are administrative rather than performance related. The warranty requires a licensed technician to perform the lineset vacuum and refrigerant release, and it still excludes labor. The line set also has a 10 ft minimum cut length, so extra length has to be coiled, routed, or professionally trimmed rather than simply cut down.
Why does airflow matter more in a high-ceiling garage?
Because heat and cool air stratify. A head mounted near the ceiling pushes air across the top of the room, and the volume at floor level, where you actually work, changes slowly. A larger fan and a wider air outlet pull conditioned air down and across the occupied zone faster.
Owners of this system specifically note that it moves more air than other 24K options they compared, which is the single most useful trait for a 10 to 12 ft ceiling space.
What are the real drawbacks of the AURA?
The warranty conditions are strict. If a DIY install is used, the coverage is void, and even with a professional install labor is not covered. Get the install date and technician information in writing at handover.
The mobile app is also reported to fail to connect on some networks, while Alexa pairing works reliably. If app-based scheduling matters to you, test pairing before the install date.

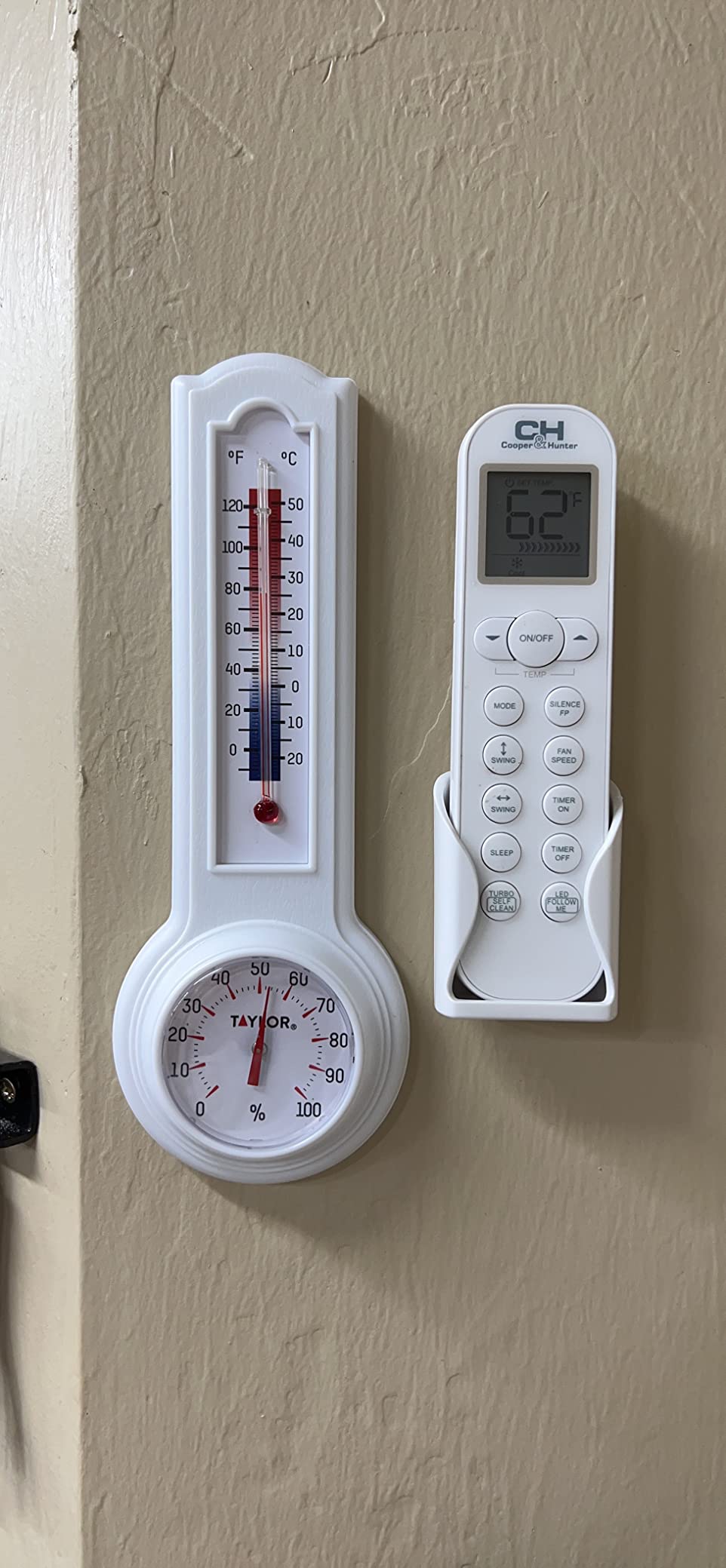

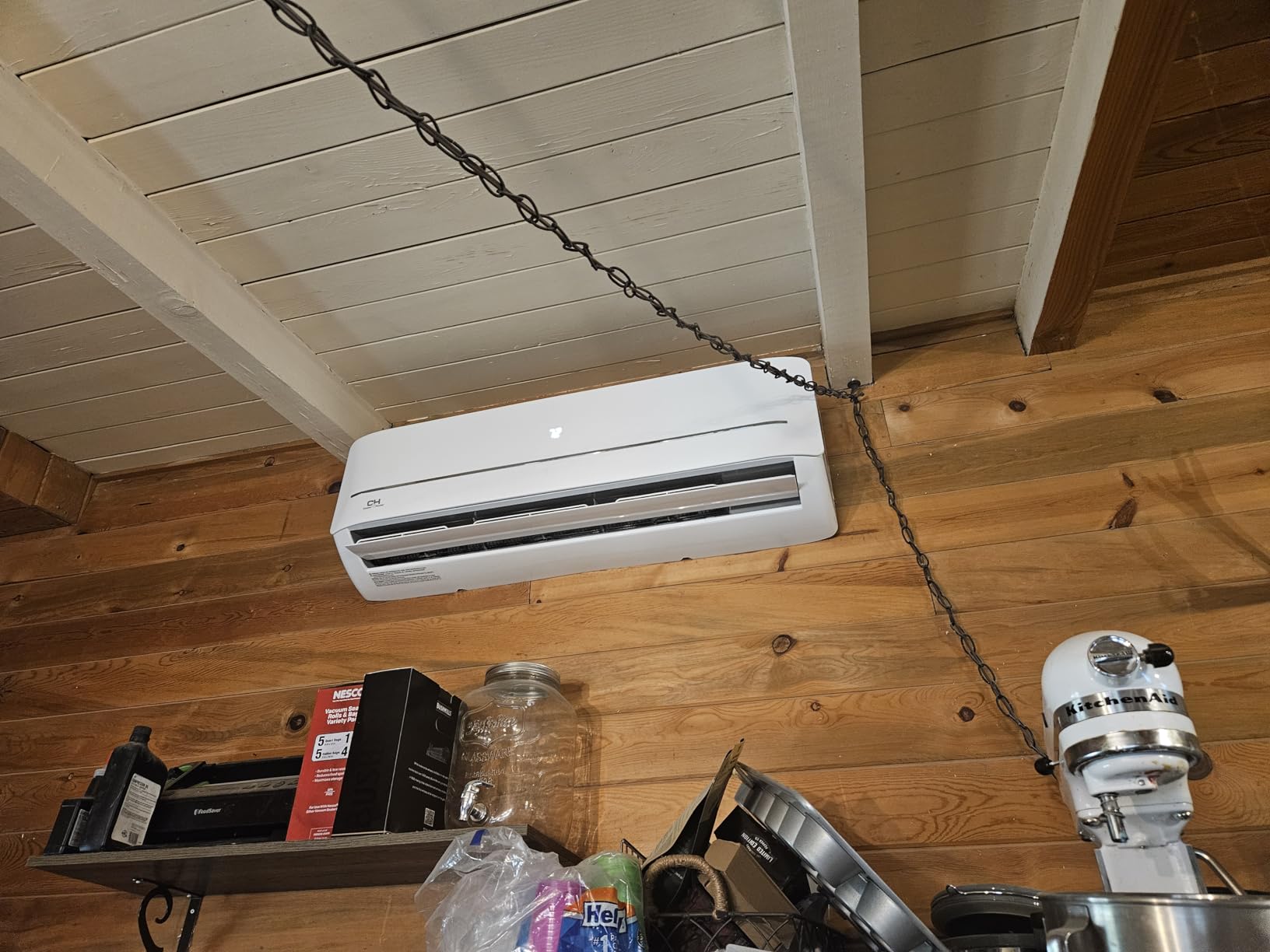

5. Cooper & Hunter 24,000 BTU 18.7 SEER2 Wall Mount System
Cooper & Hunter 24,000 BTU 230V Wall Mount Mini Split AC, 18.7 SEER2
24000 BTU 2 ton
18.7 SEER2
230V
Heating to 5F
35 dB indoor
Pros
- 7 year compressor and 5 year parts warranty
- Very quiet at 35 dB with silent and sleep modes
- Strong cooling reported above 110F outdoor temperatures
- Smart kit with app scheduling and remote access
- U.S.-based technical support for contractors
Cons
- 18.7 SEER2 is the lowest efficiency rating among the 2 ton systems
- Heating limited to 5F ambient
- Installation directions incomplete with ambiguous wiring colors
- Listed 600 sq ft coverage is low for a high-ceiling garage
This Cooper & Hunter is the quiet, long-warranty option for a machine shop or a garage used as a home gym. Owners report it displacing multiple pedestal fans and lowering electrical draw compared with window units, which is a strong result for a space people work in for hours.
The 7 year compressor and 5 year parts warranty is the strongest stated coverage among the 2-ton wall-mount systems in this roundup, and contractor reviewers consistently rate the U.S.-based technical support favorably when questions come up during installation.
At 35 dB the indoor unit is quiet enough to sit in a room where you need to hear a machine running, and cooling has been reported in outdoor temperatures above 110F. The package includes a 16 ft pre-flared and insulated copper line set, 16 ft communication wires, a 16 ft drainage extension, and mounting accessories, with the outdoor condenser pre-charged.
Two things give us pause for high ceilings specifically. The listed floor area is 600 sq ft, which is well below what 24,000 BTU normally delivers once you account for a tall volume, and heating stops at 5F ambient. The installation directions are also described as incomplete, including ambiguous compressor-to-head wiring color assignments.
Can a 2-ton system cool a garage with 12 ft ceilings?
It can, provided the volume stays modest and you add some insulation. A 20 ft by 20 ft garage at 12 ft ceilings is 4,800 cubic feet, which a 24,000 BTU unit can handle in most climates. Push much past that with frequent door openings and the system runs continuously without ever catching up.
Insulating the ceiling and the garage door is the cheapest way to make a 2-ton system handle a tall space comfortably. We walk through the priorities in the buying guide below.
What should I watch for during install?
Ask the technician to confirm the compressor-to-head wiring against the actual unit rather than the color labels in the manual, since that documentation is reported as ambiguous. Confirm the head height and reach for the filter before finalizing the mounting bracket.
A small number of owners report an indoor control board failure within a year with no manufacturer response, so registering the unit and saving the serial number is worth the two minutes.

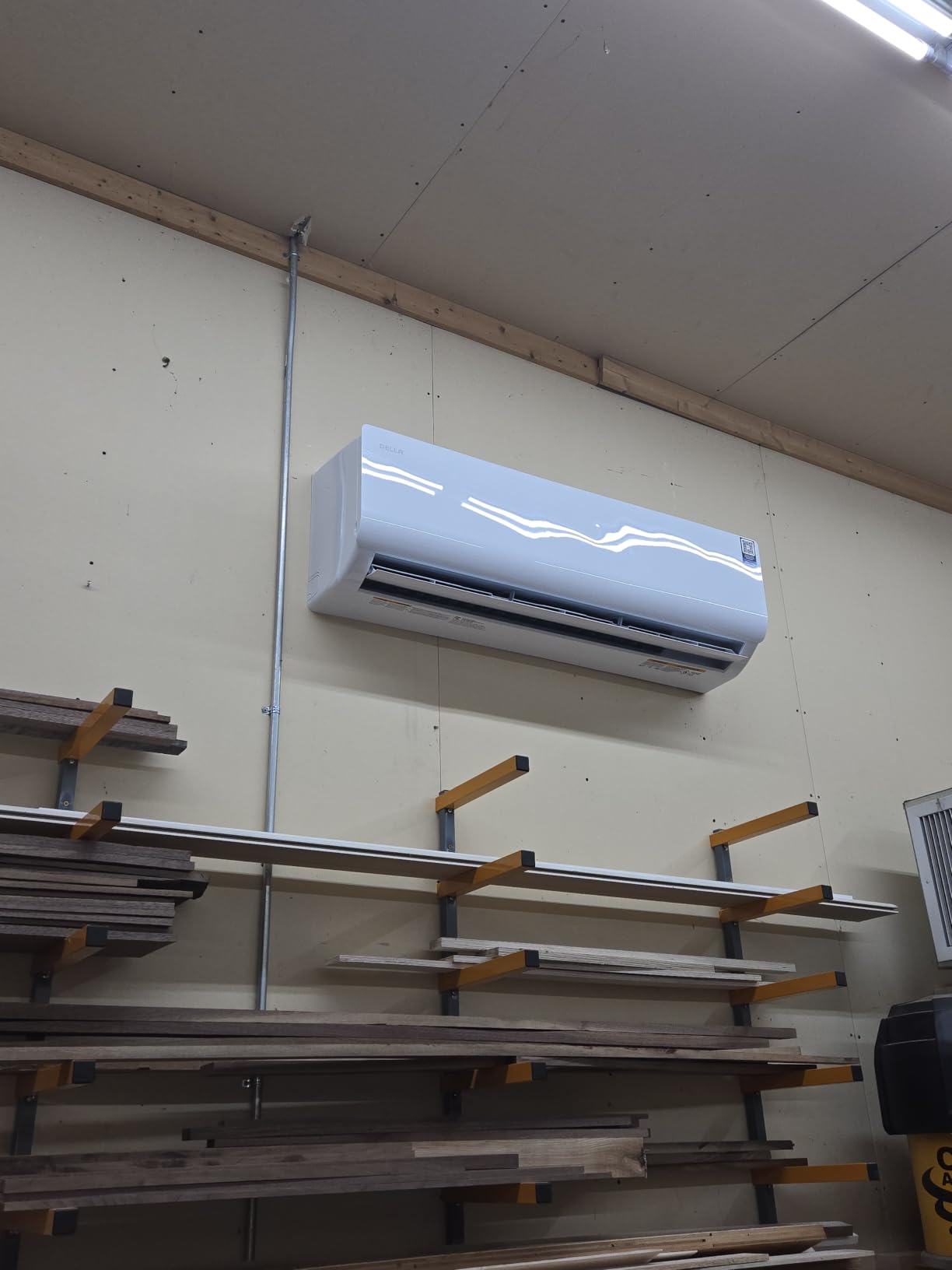

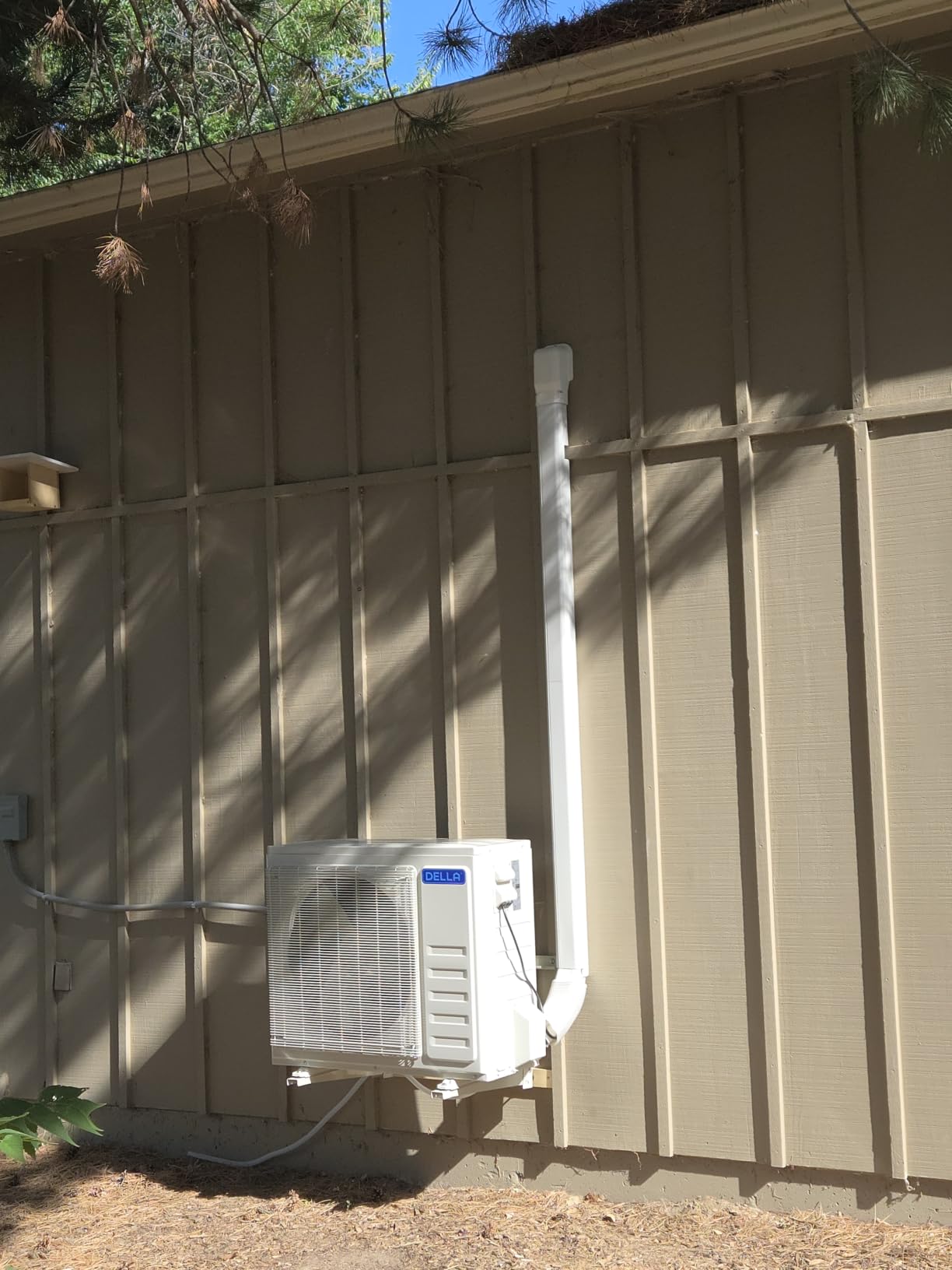

6. DELLA Vita 24,000 BTU 20 SEER2 Inverter Heat Pump
DELLA Vita Series 24000 BTU Mini Split Air Conditioner, Energy Efficient, 20 SEER2 230V, Cools up to 1500 Sq. Ft,2 Ton Heat Pump, Works with Alexa & Wifi,Ductless Inverter System,Pre-Charged,16ft Kit
24000 BTU 2 ton
20 SEER2
230V
Heating to -4F
34 dB indoor
Pros
- Highest average rating of any system reviewed at 4.6 stars
- 20 SEER2 inverter with a claimed 40% consumption reduction
- Quietest 2 ton indoor rating here at 34 dB
- Cools and heats spaces up to 1500 sq ft
- Alexa
- Google Assistant and app control
Cons
- Smallest review base in the roundup at 32 reviews
- Heating limited to -4F ambient
- Professional installation required for proper vacuuming
- One owner reports it struggling in a 1250 sq ft shop
Its satisfaction profile is also unusually clean: 81% five-star ratings with no 1 or 2 star ratings in the distribution at all. At 34 dB it is the quietest 2-ton indoor unit we reviewed, which matters if the garage is also where you record, work, or sleep in a FROG.
Owners praise easy installation for a mechanically inclined buyer, clear instructions, and effective cooling of garages and workshops through smartphone or remote control. The 4D airflow and I Feel sensor pair well with a tall head position, since the setpoint follows the remote rather than the ceiling.
The specification sheet is strong for the class: 20 SEER2 DC inverter, heating performance down to -4F, coverage up to 1,500 sq ft, and claimed energy consumption of roughly 1,828 kWh per year. Control options are the widest here, with Alexa, Google Assistant, and the DELLA app, plus a 24-hour timer and sleep mode.
The honest limitation is the evidence base. With 32 reviews this listing is young, so long-term reliability is not yet established, and one owner reports the unit struggling to hold temperature in a 1,250 sq ft shop despite its 1,500 sq ft rating. Treat it as a strong performer with a shorter track record.
Is 34 dB quiet enough for a garage gym or office?
Yes. At low fan speeds it sits below typical conversation level, and with sleep mode and a low setpoint it is close to background noise. For a space where you run a bike trainer or work at a bench, that difference is noticeable over a long session.

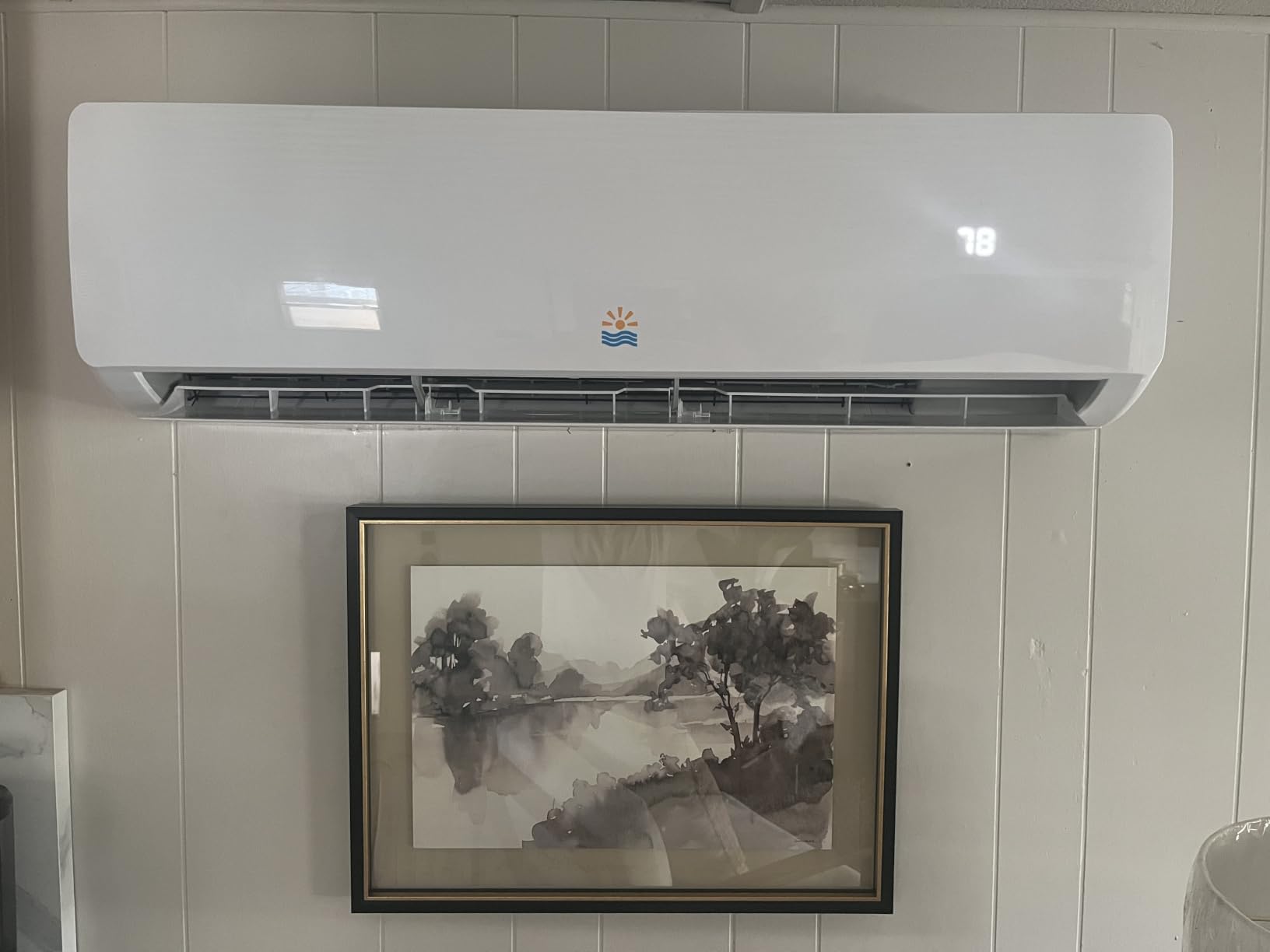

Compare that to the Rellytech at the end of this list, which is rated at 42 dB and would be a poor fit for an occupied room.
What are the risks of a newer listing?
The main one is warranty support depth. A brand with a small installed base can be slower to resolve parts questions than an established one, so factor that into your choice if the garage is your primary work space.
The second is capacity headroom. In a high-ceiling volume where warm air rises and the door opens daily, the 1,500 sq ft rating is closer to an optimistic figure than a guarantee.

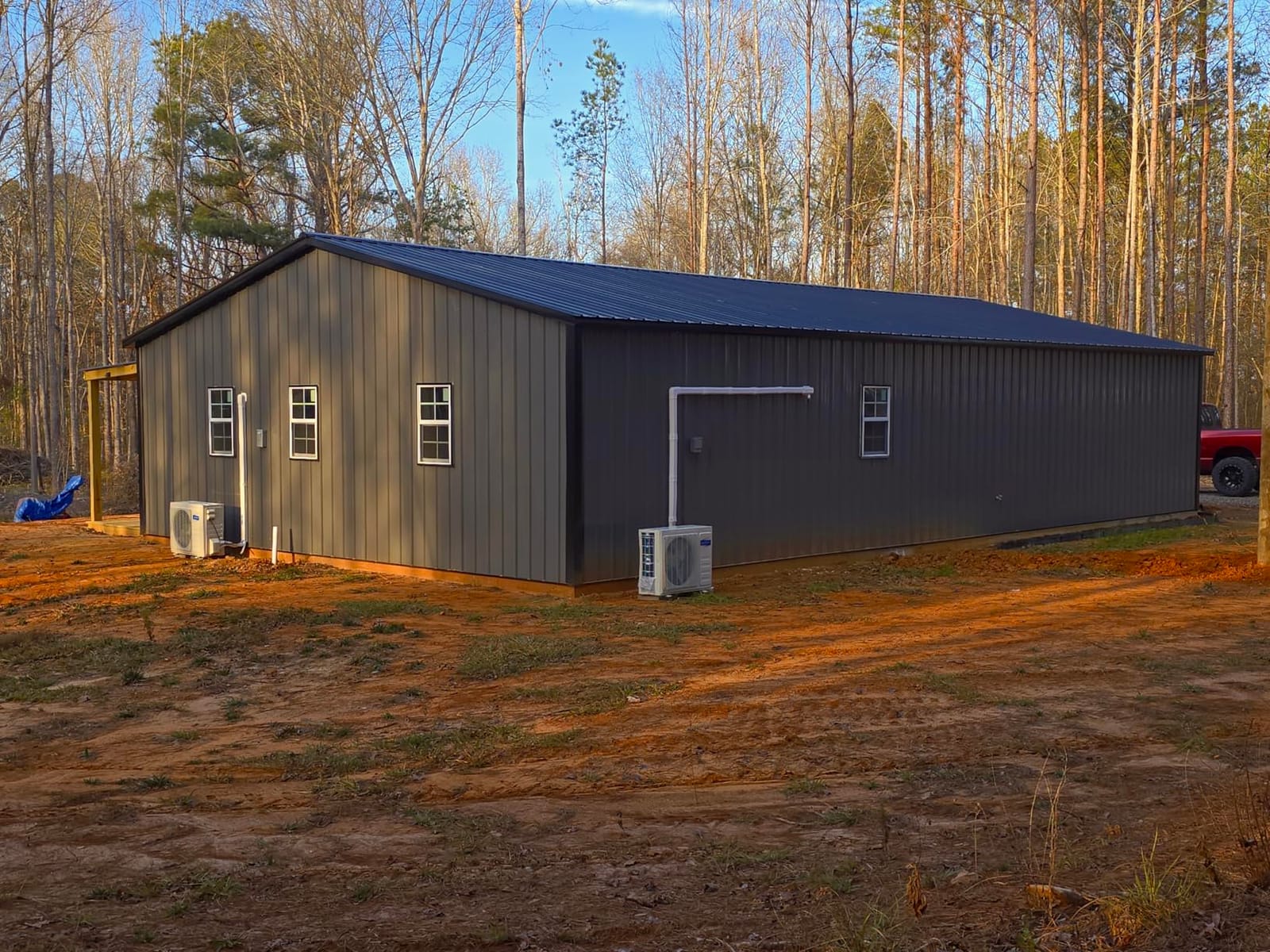

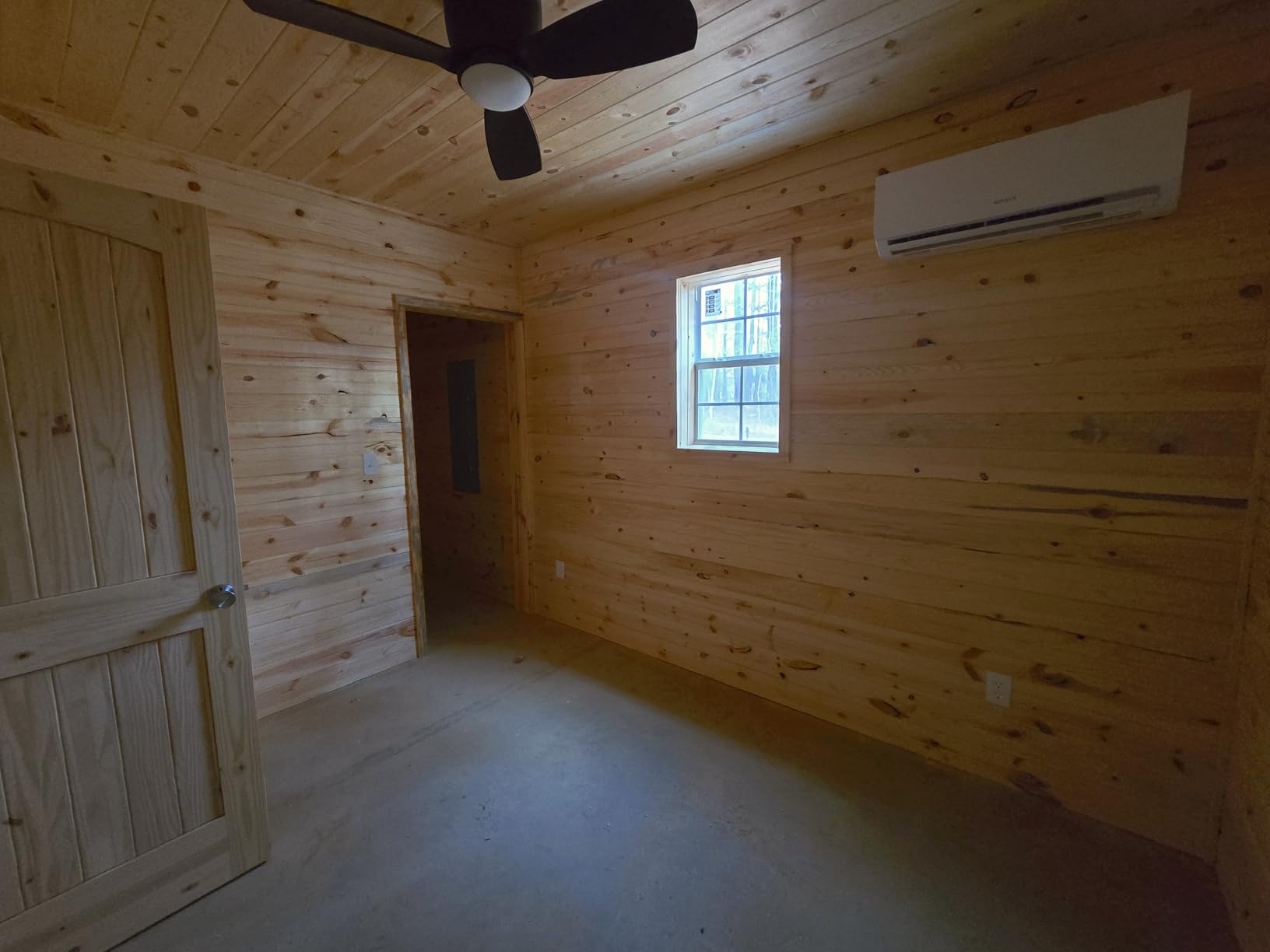

7. ROVSUN 24,000 BTU 20 SEER2 WiFi Inverter Heat Pump
ROVSUN 24000 BTU Wifi Enabled Mini Split Air Conditioner & Heater with Inverter, 20 SEER2 Energy Saving 230V Ductless Split AC Unit with Pre-Charged Condenser, Heat Pump & Installation Kit
24000 BTU 2 ton
20 SEER2
230V
61F to 88F range
36 dB mute mode
Pros
- 20 SEER2 inverter with claimed 35% energy savings
- Cools and heats up to 1500 sq ft across a 61F to 88F range
- App
- remote
- Alexa and Google Assistant control with routines
- 36 dB mute mode with 4-way swing
- ECO and sleep modes
- 16.4 ft line set included in the kit
Cons
- Only a 1 year warranty
- tied for the shortest here
- 12% one-star share
- second highest among these systems
- Heating range floor of 61F is higher than the cold-climate models
- Dual-box packaging complicates scheduling
The ROVSUN is the value entry into the 24K class, and buyers treat it that way: strong efficiency, app control, and quiet operation for garages and light commercial spaces. The claimed 35% energy savings from the 20 SEER2 inverter puts it in the same efficiency band as the premium 2-ton options.
Control is genuinely good for the money. App, remote, and Alexa or Google Assistant all work with routine scheduling, which is the feature most shop owners actually use: a schedule that cools the space before you arrive and idles it when the garage is empty.
The system runs in a 61F to 88F temperature range, covers up to 1,500 sq ft, and offers cooling, heating, fast cooling, and dehumidification modes alongside ECO and sleep settings. The kit includes 16.4 ft of copper lines and a signal cord, and the indoor unit measures 10.23 in deep by 46.93 in wide.
Single-year limited warranty is tied for the shortest here, and the 12% one-star share is higher than most of these products, with those reviews clustering around installation logistics and durability rather than outright defects. The unit also has to stay upright for 24 hours before installation, which affects your scheduling.
Why does the 61F heating floor matter?
Because it defines where the system stops being useful. A head that bottoms out at 61F in heating mode will not carry a garage through a 40F winter morning, and it will spend those hours running without reaching setpoint, using electricity for very little comfort.
If you live somewhere with mild winters and mostly want summer comfort and shoulder-season heating, that is acceptable. If you want a garage heater, choose a unit rated to at least -4F.
Is a 1-year warranty acceptable for a garage install?
It is workable if the electronics hold up, and many do. But a compressor or board failure in year three is a real possibility on any system, and a one-year warranty means you absorb that repair.
For a shop where downtime costs you money, a step-up option with a longer compressor warranty is the safer buy.
8. TOSOT 18,000 BTU 20 SEER2 Alexa-Compatible Inverter System
TOSOT 18,000 BTU Mini-Split Air Conditioner, Wifi Enabled Ductless Inverter Split System AC Unit Heating System, Compatible with Alexa – 20 SEER2 230V
18000 BTU 1.5 ton
20 SEER2
230V
Heating to -13F
22 dB to 36 dB
Pros
- 8 year compressor and 5 year parts warranty
- 20 SEER2 inverter efficiency at 1.5 tons
- Lowest indoor noise rating here at 22 dB
- Heating to -13F ambient
- Cooling reported up to 118F summer heat
- Built by GREE HVAC with 24/7 technical assistance
Cons
- Only 1.5 tons
- the smallest capacity class here
- Manual contains an incorrect wiring diagram and torque table
- Supplied connecting cord has failed electrical inspection for some buyers
- Difficult Alexa pairing for some users
The TOSOT 18K covers a smaller high-ceiling space such as a converted bay or a bonus room well. It pairs 20 SEER2 efficiency with an 8 year compressor warranty, the longest compressor coverage in this roundup, and heating down to -13F for genuine four-season use.
Reviewers treat TOSOT as a rebadged GREE build and generally find the hardware excellent. It cools in outdoor heat up to 118F, runs as quiet as 22 dB, and the GREE+ app, voice control, and remote all support daily and weekly scheduling with an LED display that can be switched off.
The feature set is deeper than the class average: cooling, heating, dry, and fan modes plus iFEEL sensing and a self-cleaning function.
The 16 ft copper line set and installation accessories are included, and the system is UL, ETL, and AHRI certified.
The documentation is where it falls short. Multiple installers flag an incorrect indoor-unit wiring diagram and an incorrect torque table nut size, and some units come with a flexible connecting cord that does not satisfy electrical code when run through a wall, forcing a rewiring and a re-inspection. If your jurisdiction is strict about inspection, raise this with your electrician before the install date.
Is 18,000 BTU enough for a high-ceiling garage?
For a small space, yes. A 16 ft by 20 ft garage at 11 ft ceilings is 3,520 cubic feet, which this unit can handle with reasonable insulation. Below that volume with a door that opens a few times a day, it holds setpoint comfortably and runs near silent.
For a three-car garage with 11 ft ceilings, it is a stretch. Warm air rises into the extra volume, and a 1.5-ton head will run continuously trying to catch up.
What should I verify before installing this unit?
Ask the installer to disregard the wiring diagram in the manual and follow the labels on the actual terminal block, and to confirm the torque specification with the manufacturer rather than the printed table. Both errors have been flagged by installers.
Confirm the connecting cord type for your local code, since some units need a replacement cord and a second inspection visit.
9. YITAHOME 24,000 BTU 21 SEER2 WiFi and Alexa Heat Pump
YITAHOME 24000 BTU Mini Split Air Conditioner Heat Pump System, 21 SEER2
24000 BTU 2 ton
21 SEER2
208-230V
5F to 118F range
50 ft max airflow
Pros
- 21 SEER2
- the highest rating among the 2 ton systems here
- 444 ratings for a deep owner base
- 5 year parts and 7 year compressor warranty
- Cools and heats up to 1500 sq ft from 5F to 118F
- 4D air circulation with 50 ft maximum airflow
- Air purification with negative ion
- electrostatic and PM2.5 removal
Cons
- 4.0 average with 13% one-star ratings
- the largest negative share here
- App connection reported as buggy and auto mode setpoints are fixed
- Installation instructions are vague and prior HVAC knowledge needed
- Distributor rather than manufacturer with weak support reach
The YITAHOME runs at 21 SEER2, the highest efficiency rating among the 2-ton systems in this roundup, and has the deepest owner base at 444 ratings, which makes it the easiest system to research before you commit. The 4D air circulation with up to 50 ft of airflow is a genuine advantage in a tall garage, since reach matters as much as tonnage when the head is mounted high.
Enthusiastic buyers cite strong efficiency, quiet and powerful airflow for the size, and successful cooling of sheds, shops, and metal buildings. The air purification features including negative ion, electrostatic, and PM2.5 removal, plus a self-clean cycle at 135F, are genuinely useful in a dusty workshop.
It runs five modes with four fan speeds, operates from 5F to 118F, and carries a 5 year parts and 7 year compressor warranty. Annual energy consumption is listed at 1,000 kWh. Control is available through app, remote, and Alexa, with iFEEL sensing, auto defrost, and self-diagnosis.
The polarized reviews are worth reading carefully. The 4.0 average reflects 64% five-star ratings against 13% one-star, and the complaints cluster around software and paperwork rather than hardware: a flaky app, a fixed and unadjustable auto mode, thin documentation, and weak distributor-level support. Several reviewers point buyers toward better-supported brands at similar cost.
Is 21 SEER2 worth paying for in a garage?
Only if the space is well insulated. Efficiency gains show up as lower compressor runtime, and an uninsulated garage with an open door will run the system at full tilt regardless of the SEER2 number. Insulate first, then the rating pays off.
If your garage stays open to the weather, the airflow reach matters more to your comfort than the seasonal efficiency rating.
What are the weaknesses of this system?
Software reliability is the main one. Buyers report the app taking many attempts to connect and auto mode setpoints that cannot be adjusted, which is frustrating when you want the garage at 55F before an early morning job.
YITAHOME is a distributor rather than a manufacturer, and reviewers report difficulty reaching an actual support person. One buyer also failed a building inspection because the manual specified an 8 ft minimum mounting height with no matching documentation, so confirm your planned head height with the installer first.
10. Rellytech 18,000 BTU 19 SEER2 Inverter Split System
Rellytech Mini Split AC/Heating System, 18000 BTU, 19 SEER2 208-230V
18000 BTU 1.5 ton
19 SEER2 HSPF2 8.5
230V
7200 cubic feet listed
42 dB
Pros
- 19 SEER2 with HSPF2 8.5
- Most complete hardware bundle including mounting plate
- cables
- pipes and drain kit
- 1250 sq ft coverage with 18000 BTU cooling
- Four fan speeds with 90 degree vertical swing and ECO mode
Cons
- 42 dB is a high specific figure for a mini split indoor head
- Only a 1 year manufacturer warranty
- Remote-only control with no WiFi or app integration
- Included pipes and cable are shorter than the 24K kits
The Rellytech is the budget pick and the simplest way to condition a small garage, workshop, or outbuilding. Buyers frame it as capable entry-level equipment, and 79% of ratings are five stars, reflecting satisfaction with cooling performance and an unusually complete hardware bundle that avoids extra parts shopping.
That bundle is the standout feature. The box includes the indoor and outdoor equipment, remote, batteries, a bracket template, mounting plate, 12.5 ft communication cable, 5.9 ft power cable, 9.84 ft connecting pipes, luting putty, a pipe protection ring, a 6.56 ft drain pipe, and screws and anchors.
Capacity is 18,000 BTU cooling and 18,400 BTU heating at 19 SEER2 and HSPF2 8.5, with listed coverage of 1,250 sq ft and a capacity figure of 7,200 cubic feet. It runs cooling, heating, drying, and fan modes with an ECO setting across four fan speeds and a 90 degree vertical swing.
Annual energy consumption is listed at 2,030 kWh. The limiting factors are capacity and features rather than build quality: there is no WiFi, app, or voice assistant integration, the included pipe and cable runs are shorter than the 24K kits in this roundup, and the 42 dB noise rating is high enough to hear in a quiet space.
When is an 18,000 BTU system the right call?
When the garage is small and the goal is basic temperature control rather than a working shop environment. A single-bay garage, a storage space, or a hobby room outbuilding with roughly 3,000 to 4,000 cubic feet is the right envelope for this unit.
At 42 dB it is audible in a quiet space but fine in a working garage with tools running. If you plan to work quietly or record in the space, that rating is the limiting factor rather than capacity.
What do I give up compared with a 24,000 BTU system?
You give up headroom for tall ceilings, smart controls, and warranty length. There is no app or voice integration, only the remote, and the warranty is one year against the five to eight year compressor coverage offered by most 24K systems in this roundup.
For a shop where a failure stops work, that shorter warranty is the deciding factor. For a storage garage on a tight budget, it is an acceptable trade.
Installation: Electrical, Mounting Height, and Line Set
Every system in this roundup requires a dedicated 240V circuit and professional installation. That is the single most important planning item, and it is where garage projects most often stall. Several of these units specify a maximum fuse size of 30A, which means a new double-pole breaker rather than a shared receptacle.
Electrical checklist: confirm panel capacity for a double-pole breaker, run copper rather than aluminum, verify the disconnect location required by your jurisdiction, and check whether your utility requires anything specific for a detached structure. Most units here are wired L1, L2, and ground with no neutral, which is unusual enough to confirm with your electrician before the day of install.
Line set length is the second constraint. Most of these systems are pre-charged for a factory charge that assumes a run under 25 ft, and going longer requires a refrigerant adjustment by a licensed technician. The Senville AURA has a 10 ft minimum cut length, so extra tubing has to be coiled or routed rather than trimmed. Plan the shortest practical path from the indoor head to the outdoor location before ordering extra line.
Mounting height is the third. Manufacturer airflow charts often only show performance with the head below 8 ft, which is why one Garage Journal owner running an 18K in an 11 ft ceiling garage mounted the unit at 8 ft 5 in and reported it working well at that height. For a 12 ft ceiling, aim to mount high enough that the discharge clears your head and low enough that airflow still reaches the floor.
Finally, plan for appearance before the wall is finished. If you want the head to disappear, a ceiling cassette needs about 11 to 13 inches of clear joist space, which many pole barn frames do not have. Slim cassettes and shallow-cavity housings exist for tighter framing, so measure the actual joist depth before ruling out a concealed look.
Cold Climate Performance and Heating Limits
The heating floor of each unit is the specification most buyers ignore and most regret. Every mini split on this list loses capacity as outdoor temperature falls, and the ones rated only to 5F or 61F effectively stop heating in deep winter. A garage you want to use as a workshop in January needs a unit rated to -13F or better.
The Senville AURA is the standout at -22F, and it does that at 2 tons, which is unusual. The Cooper & Hunter 36K and the TOSOT 18K both reach -13F. The two DELLA systems hold to -4F, which covers most of the northern US outside the deepest cold snaps. The Senville LETO, the Cooper & Hunter 24K, and the YITAHOME stop around 5F, and the ROVSUN is rated from 61F in heating.
Heating a concrete garage is a harder job than cooling it. The slab pulls heat out of the air continuously, which is why owners report a garage reading a comfortable air temperature while still feeling uncomfortable. Our infrared heater comparison for garages covers the supplemental approach many owners pair with a mini split in the coldest months.
Two habits help. Running the heat pump in continuous mode rather than cycling keeps the slab closer to room temperature, and setting the heating setpoint a few degrees below the cooling setpoint avoids the compressor reversing constantly. Freeze-stat mode on the Senville AURA does something similar, holding a shop near 45F without short cycling.
Buying Guide for High-Ceiling Garage Climate Control
Insulation makes a bigger difference than any equipment choice. A high-ceiling garage leaks heat through the roof deck, the garage door, and the surrounding walls, and every one of those losses scales with volume. In priority order: insulate and seal the garage door first, then the ceiling, then the walls.
Door insulation gets you the most for the least work, since a single uninsulated door can account for a large share of the air exchange in a space this size. Ceiling insulation next, because warm air collects directly under the deck in winter and under the roof in summer. Walls last, and only matter once the first two are done.
Concrete floors are the reason many conditioned garages still feel cold. A slab has enormous thermal mass and stays near ground temperature year round. Two low-cost mitigations help: run a fan to move air across the floor so the boundary layer does not stagnate, and lay down parking mats rated for garage floors as a thermal break where you stand and work.
Dust deserves more attention than most guides give it. A garage with a workbench generates sawdust, and a coil loaded with dust drops efficiency and can be a fire risk. Choose a system with a washable filter and a self-cleaning coil cycle, and clean it on a schedule rather than when it looks dirty. Pairing the head with a decent shop vacuum keeps the coil and the filter from loading up between services.
Smart controls are genuinely useful for garages because occupancy is predictable. App scheduling that warms the space before you arrive and idles it when you leave pays for itself faster than any efficiency upgrade, and the ROVSUN, YITAHOME, and both DELLA systems all support routines. Make sure the garage has WiFi coverage before finalizing, since a steel-block wall between the router and the head is a common failure point.
Permits and inspections vary by region, so check locally before booking the install. Two items to expect: confirmation that the head height meets local requirements, since one buyer was flagged for an 8 ft minimum mounting height, and confirmation that the connecting cord type is acceptable, which has caused re-inspections on some units.
Frequently Asked Questions
What size mini split system do I need for a 3-car garage?
Size by volume rather than square footage. A three-car garage of 24 ft by 24 ft with 11 ft ceilings is about 6,336 cubic feet, and a heavily loaded space like that usually needs 18,000 to 24,000 BTU. Add roughly 30% if the garage door opens daily or the walls are uninsulated, and move up again for 12 ft ceilings.
Do mini splits work in garages with high ceilings?
Yes, with the right sizing and mounting height. The head has to be mounted high enough to clear the work area but low enough that conditioned air reaches the floor, and the unit needs enough airflow throw to move air across the full volume. Most manufacturer airflow charts only show performance with the head below 8 ft, so check the chart for your ceiling height before buying.
How far from the ceiling can a mini split be?
As a practical rule, set the head so its discharge clears head height and aim for the upper part of the wall rather than the standard living-room position. One documented install placed an 18K head at 8 ft 5 in in an 11 ft ceiling garage with good results, but airflow charts usually stop at 8 ft, so going higher means relying on installer judgment.
What is the best mini split air conditioner for a garage?
For most high-ceiling garages we reviewed, a 24,000 BTU inverter heat pump rated for cold-climate heating is the sweet spot. The Senville AURA covers up to 1,250 sq ft, runs at 20.5 SEER2, and heats down to -22F. For a three-car garage above 6,000 cubic feet, step up to a 36,000 BTU system.
Should I get a ceiling cassette or wall mount mini split?
Choose a wall mount by default. It is visible on an unfinished wall, but it keeps all the parts reachable for filter cleaning and works in pole barn framing where joist depth is limited. Choose a cassette when you want 360 degree distribution with no visible head and your ceiling has 11 to 13 inches of clear joist space and no planned overhead storage conflict.
Are mini splits easy to install?
Not for most people. Every system in this roundup requires a dedicated 240V circuit and professional installation, and several carry warranty conditions that are voided unless a licensed technician performs the lineset vacuum and refrigerant release. The physical work is manageable, but the refrigerant and electrical steps are not a weekend project for a first-timer.
Conclusion: Our Best Mini Splits for Garages with High Ceilings
The best mini splits for garages with high ceilings are the ones sized by cubic feet, mounted where airflow can reach the floor, and matched to your winter temperatures. Our editor’s choice, the DELLA Vario 36,000 BTU, has the most capacity headroom in the roundup and is the right answer for a large detached garage or shop past 5,000 cubic feet.
For most two-car garages with 10 to 12 ft ceilings, the Senville AURA 24,000 BTU is the smarter buy. It heats to -22F, runs at 20.5 SEER2, moves more air than most of its class, and has the longest owner track record here at 547 ratings.
Add the DELLA Vita 24,000 BTU if you want the quietest indoor operation at 34 dB, the TOSOT 18,000 BTU for smaller spaces with an 8 year compressor warranty, or the Rellytech 18,000 BTU if budget is the deciding factor. Whichever you choose, confirm a dedicated 240V circuit, check the mounting height chart, and insulate the door and ceiling before install day in 2026.
